Station suffers ammonia leak; Saturday spacewalk likely (updated)

Posted By Jason Davis

2013/05/10 01:25 CDT

Topics: human spaceflight, International Space Station

The crew of Expedition 35 is gearing up for a possible emergency spacewalk this Saturday to investigate an ammonia leak on the International Space Station. The crew is currently not in danger, but NASA was expected to shut down one of the station’s eight power channels this morning. Commander Chris Hadfield reported the problem to Mission Control at around 10:30 a.m. CDT (1530 UTC) Thursday.

The station’s electrical devices produce heat that must be dissipated into space. There are two thermal control systems to handle this heat exchange: passive and active. The passive system consists of insulation, surface coatings and heat pipes. The active system is comprised of radiators with ammonia-filled cooling loops.

It’s not much different than your car’s cooling system, which transfers heat away from the engine. Whereas you fill your car with antifreeze – typically water, ethylene glycol and other chemicals – NASA uses ammonia because it represents a combination of low toxicity, flammability and freeze temperature while being relatively stable and cheap.

Each solar array has its own cooling loop that runs through one of the station’s radiators. The radiators are the white-grey, folded panels that extend off the station perpendicular to the solar arrays. Each radiator has seven panels and extends about 50 feet (15 meters) into space.

NASA / Boeing

EEATCS radiator diagram

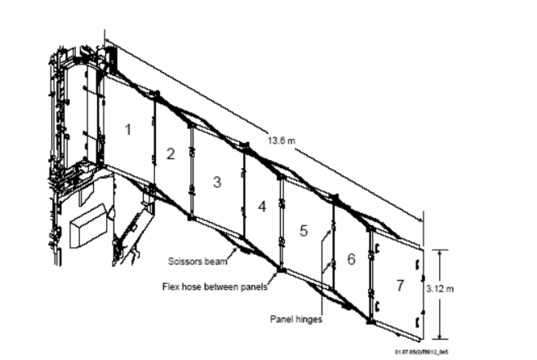

A diagram of the radiator as used during construction of the station. Radiators were first part of the Early External Active Thermal Control System (EEATCS).

The troublemaking radiator extends from the P6 truss, the furthest segment of the station on the port side. It is here where the crew noticed small white flakes floating into space.

NASA / Paolo Nespoli

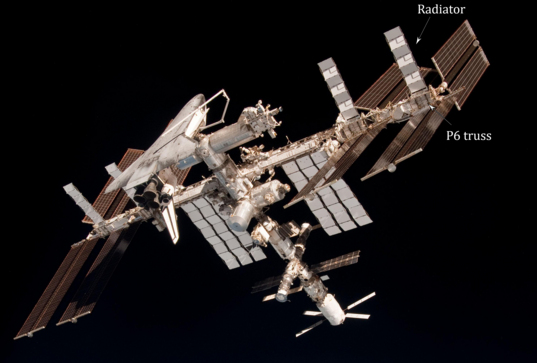

Location of P6 truss and radiator

NASA has a press conference scheduled for 4:00 p.m. EDT (1600 UTC) today. It is not yet known whether this will push back the departure of Hadfield, Tom Marshburn and Roman Romanenko, which was expected on Monday.

As a final note: here's the above photo in all its unannotated glory.

NASA / Paolo Nespoli

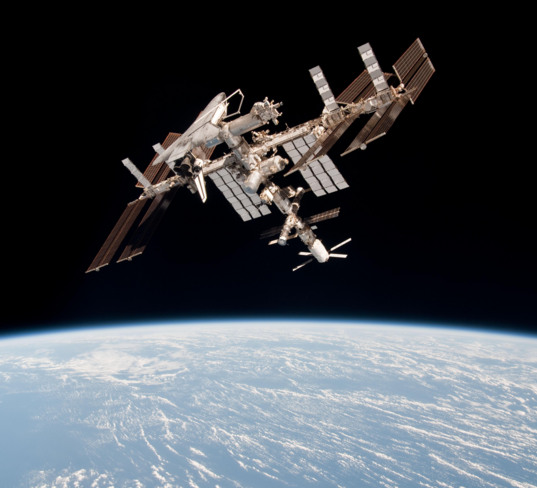

International Space Station with Space Shuttle Endeavour

The International Space Station and Space Shuttle Endeavour, as photographed from a departing Soyuz crew in 2011.

UPDATE 5/10 4:30 p.m. EDT

NASA has confirmed that Chris Cassidy and Tom Marshburn will perform a spacewalk tomorrow to replace Pump Flow Control Subassembly (PCFS) 2B on the P6 truss, which sits at the base of the station's port radiator. ISS program manager Mike Suffredini and flight director Norm Knight said the crew will wake tomorrow at 1:00 a.m. CDT, begin preparations at 2:15 a.m., and open the exterior hatch at 7:15 a.m. (1215 UTC).

NASA TV

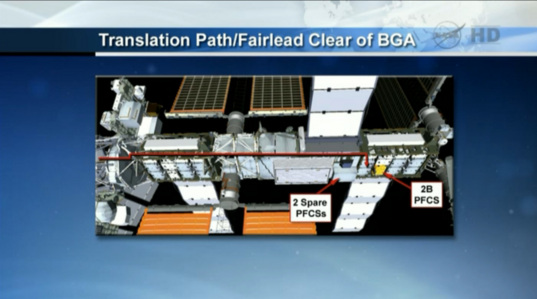

Location of suspected failed pump assembly

Cassidy and Marshburn will swap out the pump with one of three on-orbit spares. Before installing the new pump, they will inspect the empty bay for further signs of a leak.

NASA TV

Location of spare pump for spacewalk

Although Suffredini and Knight are hopeful that the pump is the source of the problem, the possibility remains that the leak is coming from somewhere else. The system is currently losing about 5 lbs. of pressure per day. The spacewalk will not affect Monday's Soyuz departure, and if the leak is not found tomorrow, it will be dealt with by a subsequent crew. Power has currently been routed around the affected circuit, and Suffredini said neither the crew nor the station's science experiments were in any danger.
