In which I dip my toes into an ocean of Hubble data

Posted by Emily Lakdawalla

25-03-2010 14:21 CDT

Topics: Hubble Space Telescope, explaining image processing

I am just drowning in data right now, and I couldn't be happier. Yesterday, while I was in the middle of an occasionally frustrating session of trying to figure out how to locate interesting stuff within the unbelievably massive Lunar Reconnaissance Orbiter Camera data set, I received an email from the Space Telescope Science Institute: "The fourth major data release (DR4) for the Hubble Legacy Archive (HLA) is now available at http://hla.stsci.edu. DR4 provides new kinds of data, substantial improvements in several classes of existing data, and enhancements in the user interface."

Now, I can't remember signing up for this mailing list, or ever having seen the Hubble Legacy Archive data browser before. I went to check it out, and, whoa. Holy cow. It provides unbelievably easy access to Hubble's public data, more than 16 years' worth. The most recent data available on a planetary target was taken only last month, on February 12, some views of Kuiper belt objects 2000WK182, 2000YB2, 2000YH2, and 2003UZ117 using the newly installed Wide Field Camera 3, with Mike Brown as the principal investigator. (You'd better analyze that data fast, Mike!)

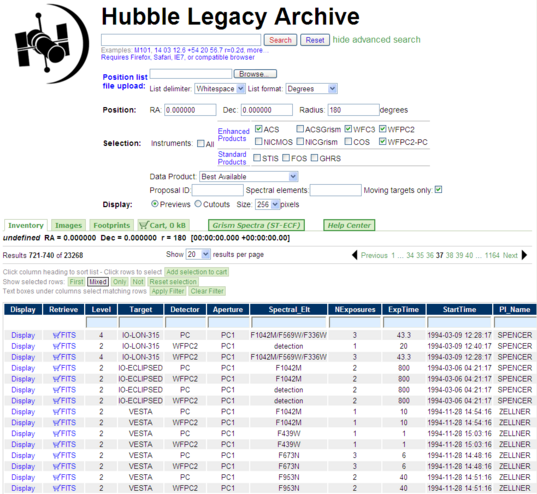

Hubble Legacy Archive data browser

Hubble Legacy Archive

Hubble Legacy Archive data browser
Visit http://hla.stsci.edu/hlaview.html to search the Hubble Legacy Archive and retrieve data.

There are some tricks required to locate data. Fortunately, there was a five-minute video tutorial on using the data browser, which is necessary to watch if you want to have any idea what you are doing with the data browser. And make sure you watch it through to the end, because it's in the last seconds of the video where it shows you how to search for moving targets -- that is, planets, asteroids, comets, and the other stuff that I'm interested in.

So I followed the video directions and searched the database for all moving targets as seen by Hubble's main camera instruments: ACS, WFPC2, the WFPC2 PC, and WFC3. (I didn't include NICMOS because if I dive into Hubble data I am really most interested in high-res images taken in visible wavelengths.) After chugging for some time, the browser returned nearly 24,000 unique observations.

That's a bit much to browse, but fortunately the browser makes it super duper easy to filter your results. Want to see Hubble's images of Vesta? Just place your cursor into the little text box at the top of the "Target" column and type in "*vesta*" (you need the asterisk wildcards so you can make sure to get observations labeled as "4-VESTA" or other things that aren't just "VESTA.") There are 319 entries in the database with that filter applied.

So much data, so little time! I searched on various targets and dug up all kinds of good stuff. Here's a little sampler of the kinds of images that you can find in the Hubble Legacy Archive; I didn't take the time to do any fancy processing, just adjusted the contrast to make things visible. These aren't the best things available -- they're just the random ones I clicked on as I was wandering around the search results table. All of these images are from Hubble's Wide Field and Planetary Camera 2; they're taken through a variety of different filters.

A potpourri of public Hubble WFPC2 data

NASA / STSCI / Hubble Legacy Archive / montage by Emily Lakdawalla

A potpourri of public Hubble WFPC2 data
A random selection of images of "moving targets" imaged by Hubble's Wide Field and Planetary Camera 2, taken during a stroll through the Hubble Legacy Archive. Top row: Europa, Io, and Jupiter. Second row, left: Venus; right: Rhea, Saturn, and below Saturn, Tethys. Third row, left: Comet Hale-Bopp; then comet 8P/Tuttle; then Mars, then a potpourri of objects. The potpourri is, clockwise from upper left: Uranus; Neptune; either Ganymede or Callisto; Vesta; and Ceres. Finally, at the bottom, is the lunar crater Copernicus. All the data are shown at their full resolution. Objects that are closer therefore appear larger.

Remember that since Hubble is sitting in Earth orbit, objects look relatively bigger if they're closer to Earth and smaller if they're farther away. See how small Neptune is? That's why I didn't even try to dig up any of the images of Kuiper belt objects -- I'd have little hope of figuring out which bright spot within the data is the object being looked at. (You're safe for now, Mike.)

If you want to dive into the Hubble archive yourself, there is a little bit of a learning curve involved in working with the data, but there is also tons of documentation available on the Hubble Legacy Archive website. You will need some kind of software that can read FITS format images. FITS is commonly used by astronomers because it is designed to encode images that contain objects over an incredible range of brightness, from dark little Kuiper belt objects to bright stars, from dark, dusty rings to bright ice giant clouds, all within the same picture. I use the free FITS Liberator plugin to Photoshop provided by the ESA side of the Hubble project, but there are other options out there if you don't have Photoshop.

Sadly, I just don't have the time to really learn how to process these images, so with this post, I am going to have to tear myself away from them. I will have to rely on other amateurs out there figuring things out and sending me pretty pictures to post. But what I can do is tell you what is there to be found in the data set. I sorted the search results on the target field and came up with the following reasonably comprehensive list of targets. (Remember that you need to enter these things with wildcards, as *targetname* in order to produce all of the observations containing each target.) I provide it to you as a map to the hidden treasures within the archive. Now go forth and dig up some pretty pictures!

alexandra
amphitrite
any
apollo-15
apollo-17
arend
aristarchus
ashbroo
asteroid
astrae
b2
borrelly
bus
cabeus-a
callisto (also cal-*)
camilla
eres
cernis
cg
ciffreo
clark
comet
copernicus
crocus
cybele
dione
egeria
elektra
eris
eugenia
eunomia
europa
faye
finlay
flora
forbes
fringilla
ganymede (also gan-*)
gehrels
giclas
glauke
gleason
gyptis
hale-bopp
hartley
haumea
hebe
herculina
hermione
hestia
holmes
hyakutake
hygiea
iapetus
ida
io
irene
iris
ixion
julia
jupiter (also jup-*)
karin
kb1
kbo
kearns
kojima
kopff
kushida
leda
leonos
linear
logos-zoe
lutetia
mars
massalia
mcnaught
melpomene
minerva
nemausa
neptune
nysa
objectx
obj-kbo
orcus
pales
pallas
parthenope
pluto
quaoar
reinmuth2
saturn (also sat-*)
schaumasse
schuster
sedna
shajn
shoemaker
skiff
sl
slew
smirnova
spacewatch
sw
swift
sylvia
tempel
tempel-tuttle
titan
torres
triton
tuttle
uranus
urata
ursula
varuna
venus
vesta
vibilia
west
wild
wirtanen
wiseman
wolf

Also there are lots of provisionally designated objects. The provisional designations can take the form YYYYaa#, like 1992qb1 and 2003el61; they may have the form YYaa#, like 99tr11; they may have the form YYYY-aa#, like 2003-qa91; there are some with more complicated number-letter designations starting with j or k; there are provisionally designated comets, like p2010-a2; and some just have 4- to 6-digit numerical designations, like 20108. For these objects, rather than filtering on the target, it may be more productive to filter the search results on the names of the principal investigators who most often do these kinds of observations: Brown, Noll, and Grundy are among the most prolific ones.
