Larry Crumpler

Field Report From Mars: Sol 3111- October 23, 2012

Posted by Larry Crumpler

23-10-2012 11:27 CDT

Topics: Opportunity, mission status, Mars Exploration Rovers, Mars

We on the MER Opportunity science team are currently doing an "outcrop walk" with Opportunity on the slopes of Cape York, a small residual part of the rim of the 20+ km diameter Endeavour crater, Mars. This part of Cape York where we are currently exploring is where we have evidence for ancient clays and we would like to examine them. On Earth, when mapping the geology of an area, a geologist often walks around getting a general feel for what outcrops are present and what particular outcrops will be the best for sampling or for testing a particular hypothesis. So with Opportunity we are doing a loop and then deciding where to spend our time analyzing an outcrop. As we drive along with Opportunity, I map out the geologic contacts and try to match them up with features a "base map" that consists of an MRO/HiRISE image of Cape York and the western rim of Endeavour Crater.

I suggested a loop that took us through all of the important areas of outcrop that are detectable from MRO/HiRISE images, going up hill along the ridge crest and then back down and eventually returning to the starting point. Along this traverse we are acquiring 360 panoramas with the Navcams as well as detailed color Pancam images of possible targets of interest. Some interesting and strange rocks and alterations have been detected, and we may check them out later. But first we need to complete the loop. We are about halfway through the loop. Who knows what we will see on the next drive. It's all unexplored terrain. Nobody has ever been here before!

Below are some images to show where we are and what we are doing.

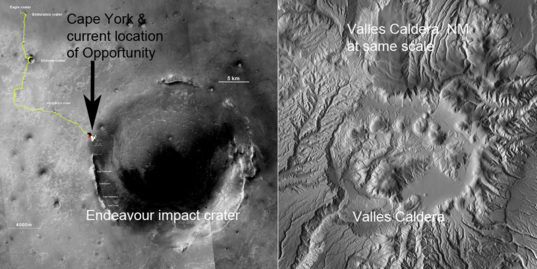

Opportunity is currently exploring a small ridge, Cape York, that is a remnant of a large impact crater dating from early Mars geologic history. The crater (Endeavour crater) is about the size of New Mexico's Valles caldera.

Endeavour Crater, Mars and Valles Caldera, New Mexico

NASA/JPL-Caltech/University of Arizona/Larry Crumpler

Endeavour Crater, Mars and Valles Caldera, New Mexico

We have been exploring along the margins of Cape York since sol 2681. This map shows the traverse north and around the north top of Cape York, and the drive south along the east side. About halfway down the side we directed Opportunity into the interior in search of outcrops of clay minerals.

Opportunity's traverse around Cape York from sols 2681–3110

NASA/JPL-Caltech/University of Arizona/Larry Crumpler

Opportunity's traverse around Cape York from sols 2681–3110

As we traverse the surface and visit outcrops, I keep a running record of the observations in the form of a geologic map. This is the first geologic mapping on the surface of another planet based on actual on-the-site field observations! This is not a photogeologic map. It is a field-based map.

Each stop is enclosed by a vertically projected version of the 360 Navcam panoramas (grayish blotches). These provide details at cm-scale to better understand the regional outcrops mapped in the MRO/HiRISE image used as a base map.

Field geologic map of Cape York

NASA/JPL-Caltech/University of Arizona/Larry Crumpler

Field geologic map of Cape York

Below is a small south-looking segment of the 360 degree Navcam panorama acquired at the end of the drive on Oct 23 (sol 3110).

Portion of end-of-drive Navcam panorama from sol 3110

NASA/JPL-Caltech/Larry Crumpler

Portion of end-of-drive Navcam panorama from sol 3110
