Larry Crumpler

Field Report From Mars: Sol 3215-3219 - February 6-13, 2013

Posted by Larry Crumpler

13-02-2013 10:27 CST

Topics: Opportunity, mission status, Mars Exploration Rovers, Mars

Sol 3215 - February 6, 2013

We have been seeing lots of small light-colored veins crossing through the outcrops here on Matijevic Hill, and we have tried to get a handle on the composition of these veins by doing multiple offsets with the APXS. It appears that the small veins are calcium sulfate, as best we can determine. In other words, they are probably gypsum like the large veins that we saw around the margins of Cape York. Here are examples of some of these back in the Ortiz outcrop. They are tiny, measuring at a millimeter or two in width. But they are everywhere.

Gypsum veins at the Ortiz outcrop

NASA/JPL-Caltech/Cornell

Gypsum veins at the Ortiz outcrop

Oddly enough, Curiosity has just encountered a similar sort of veins in the outcrops where it is sitting at Gale Crater.

We moved north to an outcrop we called "Flack Lake" recently and did a quick look at the rocks with the MI and APXS. The target name was "Fullerton." Here is a MI mosaic of Fullerton, an area on the outcrop a little under 3 inches across that we brushed with the RAT. The image from the MI has been co-registered with a color Pancam image in order to bring out the color.

MI mosaic of Fullerton after RAT brush, colorized using Pancam

NASA/JPL-Caltech/USGS/Cornell

MI mosaic of Fullerton after RAT brush, colorized using Pancam

It looks like the "newberries" are part of the Whitewater Lake outcrop, not just loose spherules sitting on top of the outcrop surface. So the contact between Whitewater lake and the impact breccias farther upslope (we think) that we have been calling "Shoemaker Formation," may be transitional. The iron content of the rock here based on the APXS results is not sufficient for these to be hematite concretions ("blueberries"). These are something different.

With that question examined, the next question on our list is the location of the contact between the rocks low on the hillside, which tend to look like Whitewater Lake, and the more impactite-like rocks we saw up on the ridge crest. So we have driven upslope around sol 3212 to see if we can find the contact between the rocks containing newberries and the rocks that are more like impact breccias in appearance.

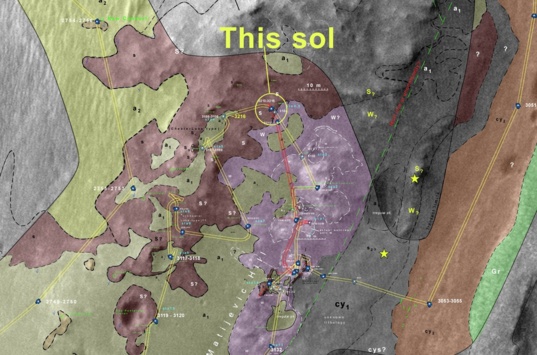

Here is my geologic map of our current location. We think the brown unit labeled "S" is on top of the pink unit labeled "W." But we need to confirm that. So in the next drive we will go up slope to the outcrops on the crest of the hill. Remember that we have previously driven a loop around the outcrops to see what is here. And now we are going back at looking at the especially interesting and informative outcrops, just like the way we would do it in the field here in New Mexico.

Geologic map of Opportunity's location as of sol 3215

NASA/JPL-Caltech/University of Arizona/Larry Crumpler

Geologic map of Opportunity's location as of sol 3215

Here is a zoomed-in look at the local terrain showing where Opportunity is and where it will drive in the next sol. These are Navcam frames that have been re-projected to an overhead view. The red tracks are the current drives, and the yellow tracks are from the previous drive through this area last month.

Position of Opportunity as of sol 3215 and drive path for the next sol

NASA/JPL-Caltech/Larry Crumpler

Position of Opportunity as of sol 3215 and drive path for the next sol

If we are lucky, we will be driving downslope and preparing to finish up our outcrop investigations here on Matijevic Hill within the next seven days or so.



Sol 3219 - February 13, 2013

We sent Opportunity a few meters uphill looking for the contact and are trying to get a quick composition and microscopic image on the outcrop. It looks like the Shoemaker Formation (impact breccia). If the rock has round spherules, it would be unlike the breccias we saw elsewhere along the ridge crest.

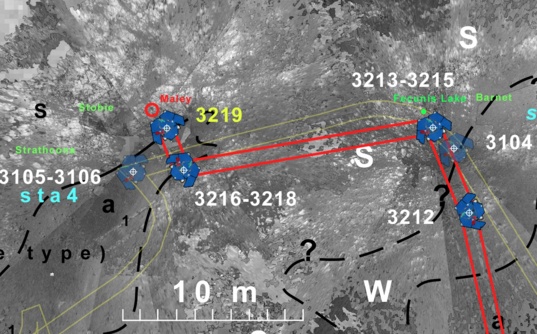

Here is latest map that I prepared after the sol 3219 drive. The base image for this map is a mosaic of the local Navcam panoramas reprojected in vertical perspective.

Opportunity's position after the sol 3219 drive

NASA/JPL-Caltech/Larry Crumpler

Opportunity's position after the sol 3219 drive
