Headshot of Emily Lakdawalla

How the duck got its neck: Rapid temperature changes from self-shadowing may explain 67P's unusual activity and shape

Posted by Emily Lakdawalla

11-09-2015 11:04 CDT

Topics: Rosetta and Philae, comets, comet Churyumov-Gerasimenko, explaining science

When Rosetta approached comet Churyumov-Gerasimenko last summer, both its shape and its activity were surprising. It looked like two comets welded together at a skinny neck. But just as surprising, to comet researchers, was the fact that the cometary activity appeared to originate within the neck.

Comet jets! NavCam view of comet Churyumov-Gerasimenko on September 2, 2014

ESA / Rosetta / NavCam / Emily Lakdawalla

Comet jets! NavCam view of comet Churyumov-Gerasimenko on September 2, 2014
A four-image mosaic of comet Churyumov-Gerasimenko taken by Rosetta on September 2, 2014 clearly shows at least two jets emanating from the "neck" region of the comet.

Here's the reason that's such a surprise. The animation below was produced for Philae landing site selection, and it shows how much of the comet's surface was in sunlight at the time. Red areas are continuously illuminated, so are hottest. Cometary activity has to do with volatile materials (especially ices like water and carbon monoxide) being heated and sublimating. And yet the hottest regions on the comet -- its twin poles, one broad area on each lobe -- aren't making jets like the neck areas are. What gives?

Primary and backup landing sites for Philae (spinning shape model)

ESA / Rosetta / DLR / MPS for OSIRIS Team MPS / UPD / LAM / IAA / SSO / INTA / UPM / DASP / IDA

Primary and backup landing sites for Philae (spinning shape model)
This 3D model of comet Churyumov-Gerasimenko was derived from OSIRIS image data. It is color-coded according to how much sunlight reaches the surface, where red is continuously illuminated, yellow is intermediate, and blue is often shaded. Site J, on the "head" of the comet, is the primary selected landing site, and Site C is a backup.

A new paper published in the Astrophysical Journal by Victor Alí-Lagoa, Marco Delbo', and Guy Libourel presents a possible explanation. The three scientists do work in thermophysical modeling -- they use physics to examine how changes in temperature propagate through solar system materials, and investigate what happens to those materials as their temperature changes.

They asked whether the comet's unusual shape might have any effects on the temperatures experienced from place to place on its surface. They took a model of the rotating comet and looked at how its surface temperatures change as parts of its surface cast shadows on other parts, or reflect sunlight into shadowed regions, for four different dates. In their model, they found that while the neck area of the comet doesn't experience the most extreme temperatures, it does experience the most extreme temperature changes, where baking-hot sunlit surfaces are suddenly sunk into very deep shadows, and just as suddenly lit up again. On the two lobes of the comet, temperature change happens at only a few kelvins per minute; in the neck region, it can spike or plunge by more than 30 kelvins per minute. Here's one of their model results -- look at how that neck lights up! The places on the comet where temperature changes the fastest correlate well with the positions of observed jets.

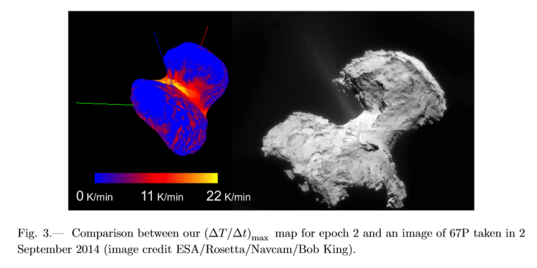

Locations of rapid temperature changes on comet Churyumov-Gerasimenko
Locations of rapid temperature changes on comet Churyumov-Gerasimenko
Figure from "Rapid temperature changes and the early activity on comet 67P/Churyumov-Gerasimenko," by Victor Alí-Lagoa, Marco Delbo', and Guy Libourel. "Epoch 2" refers to September 22, 2014.

Why does the rate of temperature change matter? In previous work, Delbo' and Libourel and other workers have explored how thermal changes can cause cracking. More rapid temperature changes make for higher stresses and more rapid cracking. Cracks in a comet can expose volatile material that was previously protected from the vacuum of space. The exposure of the material might not happen instantly, but a pervasively cracked surface will erode more rapidly, so cracks accumulated when the comet is close to perihelion could break open later. The authors explain: "In this case, ice would progressively be exposed on the concave parts and would subsequently be available for sublimation when the temperatures increase sufficiently as the comet approaches perihelion once again."

If true, this thermal-shock-cracking scenario might also explain the comet's two-lobed shape. A small initial concavity on the surface -- maybe an impact crater -- could, over time, through positive feedback, grow into a comet-bisecting neck. The authors go on to speculate that "faster thermal cracking in concavities might also explain why water ice was detected on asteroids (24) Themis and (67) Cybele (Campins et al. 2010; Licandro et al. 2011) at heliocentric distances at which water ice is not expected to be stable," and that the process might be quite common on small bodies in the solar system.

I'll carry the speculation a little bit farther: if a positive feedback mechanism has made a two-lobed world out of a single-lobed one, surely it will continue until it breaks the comet right in half. If the mechanism is common in ice-rich small bodies, as the authors suggest, I wonder if this is a pretty rapid way to disintegrate them: strike your comet or ice-rich asteroid with a biggish object to create a concavity, then watch the concavity grow until it cuts the thing in two, each of the resulting pieces being much smaller than the original. It's a wonder we have any little icy worlds left to visit!

See other posts from September 2015


Or read more blog entries about: Rosetta and Philae, comets, comet Churyumov-Gerasimenko, explaining science


nathan: 09/11/2015 12:35 CDT

Maybe "contact binaries" are formed this way. Probably not this one: (it's just an asteroid). But perhaps a future contact binary of comet size, if discovered, could be explained this way. Very cool!

ethanol: 09/11/2015 05:12 CDT

A very satisfying hypothesis! Seems that this might also explain the "pits" from which jets seem to emerge.

Arbitrary: 09/12/2015 02:36 CDT

It must be extraordinarily unlikely to have such a fresh comet. In the 1950s (before discovery) it suddenly halved its perihelion during a Jupiter flyby. And it is 4½ billion years old. I doubt there is a second one like it if it evaporates so fast. A bit worrying otherwise, that Jupiter throws these things towards us. We would all die it this one hits Earth. Maybe most comet that have hit Earth have been substantially decreased in size before impact?

Karen: 09/14/2015 04:04 CDT

If it breaks by sublimation (aka, little to no impulse pushing the halves apart), wouldn't the two halves just collapse back together over time due to the weak (but still present) force of gravity? Certainly they're not going to relax into hydrostatic equilibrium, but they could persist as a rubble pile or even potentially be re-cemented back together by water vapor.

phenporter: 09/16/2015 12:04 CDT

Would be interesting to see what their model predicts for other bi-lobed objects, especially Halley, Borrelly and Hartley2. As our population of known cometary shapes seems skewed towards lobedness, I can't help but wonder if this could be a very significant or even the predominant mechanism of cometary errosion.
