Juno prepares for vibration testing

Filed under pretty pictures, spacecraft, Juno

Go Back

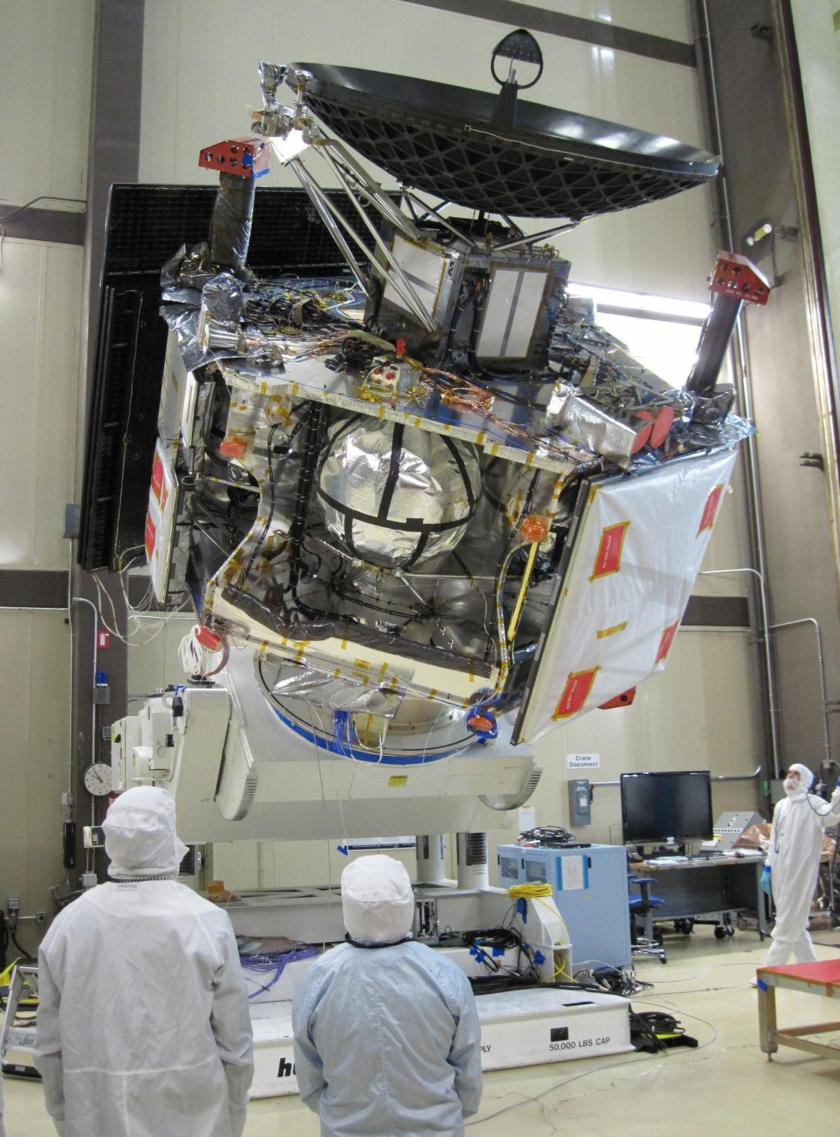

Juno prepares for vibration testing NASA's Juno spacecraft looms above the assembly floor as technicians prepare the Jupiter-bound probe for a round of testing that simulates the vibrations the spacecraft will experience during launch. Juno's dish-shaped high-gain antenna has been installed in preparation for the test, along with the spindly truss that supports adjacent low- and medium-gain antennas. A single solar array has also been installed for the test, and can be seen in stowed configuration on the far side of the spacecraft. The spacecraft is mounted on a large rotation fixture which allows it to be turned for convenient access for integration and testing of various subsystems. Here, technicians are in the process of rotating Juno into a vertical orientation as they prepare to lift the spacecraft onto a test stand. This image was taken on November 22, 2010, in the high-bay cleanroom at Lockheed Martin Space Systems in Denver.

NASA / JPL-Caltech / Lockheed Martin

Creative Commons License
This work is licensed under a Creative Commons Attribution 3.0 Unported License.
Contact us to request publication permission from the copyright holder. Original image data dated on or about November 22, 2010
