Checking in on Chang'e 3 and Yutu from Lunar Reconnaissance Orbiter: Yep, still there!

Posted by Emily Lakdawalla

04-03-2014 13:08 CST

Topics: pretty pictures, pics of spacecraft in space, Lunar Reconnaissance Orbiter, mission status, spacecraft, the Moon, Chang'E program

Seeing hardware that was built by human hands sitting on the surface of another planet never, ever gets old. Today, the Lunar Reconnaissance Orbiter Camera (LROC) team released two new images of Chang'e 3 and Yutu on the Moon. In my favorite view of the landing site, you can clearly see Yutu's tracks on the Moon:

Chang'e 3 and Yutu on the Moon on their third lunar day

NASA / GSFC / ASU

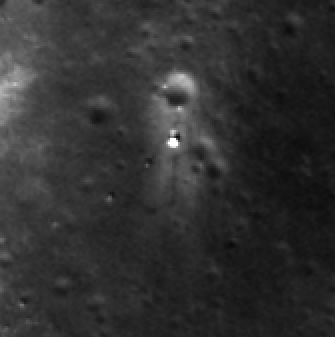

Chang'e 3 and Yutu on the Moon on their third lunar day
A photo from Lunar Reconnaissance Orbiter shows the Chang'e 3 lander and its little Yutu rover on the Moon on their third lunar day, February 17, 2014. On the first and second days, the rover had circled the lander, driven south, and then returned toward the lander. The rover did not move during the third lunar day.

Here's an annotated version of the same photo:

Chang'e 3 and Yutu on their third lunar day (annotated)

NASA / GSFC / ASU

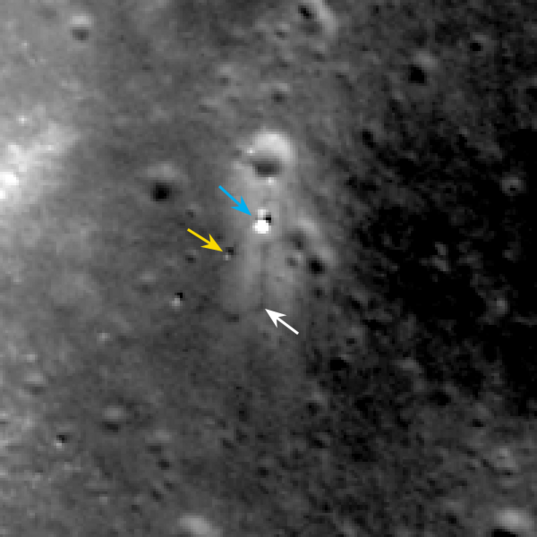

Chang'e 3 and Yutu on their third lunar day (annotated)
Blue arrow indicates Chang'e 3 lander, yellow arrow points to Yutu (rover), and white arrow marks the December location of Yutu. Yutu's tracks can be followed clockwise around the lander to its current location. Image enlarged 2x, width 200 meters.

The other images, assembled into an animation, confirm what we've been told already: Yutu didn't move much, if at all, between the last two images. The penultimate image was taken January 21, the last one February 17. The motor problem was reported on January 25.

Lunar Reconnaissance Orbiter watches over Chang'e 3 and Yutu (animation)

NASA / GSFC / ASU

Lunar Reconnaissance Orbiter watches over Chang'e 3 and Yutu (animation)
Four views of the Chang'e 3 landing site taken by Lunar Reconnaissance Orbiter Camera, from before the landing until February 2014.

It's cool how the appearance of the landing site shifts from photo to photo. Mars orbiters have "sun-synchronous" orbits, whose ground tracks shift westward at exactly the same rate that the Sun apparently does, so illumination angle is roughly constant with time (the seasons do cause changes in illumination angle). Lunar Reconnaissance Orbiter doesn't do that, so it sees spots on the Moon at all different solar incidence angles. High solar incidence angle means that topographic features throw long shadows, making it easy to see the landscape shape from shading. Low solar incidence angle suppresses topography, especially the more muted, longer-wavelength topograhy, and the lighter and darker areas are instead showing you different properties of the surface: fresh craters are surrounded by brighter splashes of material that hasn't been darkened by billions of years of space weathering. Here's the summary of the shifting light from the LROC website:

Chang'e 3 landed on Mare Imbrium (Sea of Rains) on 14 December 2013. LROC has now imaged the lander and rover three times: 25 December 2013 (M1142582775R), 21 January 2014 (M1144936321L), and 17 February 2014 (M1147290066R). From month-to-month the solar incidence angle decreased steadily from 77° to 45° (incidence angle at sunset is 90°); due to the latitude of the site (44.1214°N, 340.4884°E, -2630 meters elevation) the incidence angle cannot get much smaller. Solar incidence angle is a measure of the Sun above the horizon; at noon on the equator the Sun is overhead and the incidence angle is 0°, at dawn or dusk the incidence angle is 90°.

But, like her sisters at Mars, Lunar Reconnaissance Orbiter can perform some tricks to get unusual photos of interesting sites. Here is one more really awesome picture of the desolation of Chang'e 3's landing site, seen from an oblique, out-the-airplane-window type of perspective.

Oblique view of the Chang'e 3 landing site in Mare Imbrium

NASA / GSFC / ASU

Oblique view of the Chang'e 3 landing site in Mare Imbrium
Lunar Reconnaissance Orbiter slewed 54 degrees to the east on February 16, 2014 to allow LROC to snap a dramatic oblique view of the Chang'e 3 landing site (arrow). The crater in front of the lander is 450 meters in diameter, image width 2900 meters at the center. (LROC image M1145007448LR)
