Calypso coolness

Posted by Emily Lakdawalla

14-02-2010 20:42 CST

Topics:

EDIT: It's been pointed out to me that Calypso is in Tethys' trailing (L5) Lagrangian point, not the leading one as I had here earlier!

Cassini performed a close flyby of Mimas yesterday, the only one planned for the whole mission. The images from that encounter are not yet on the ground, but there are some preliminary goodies: Cassini got pretty close to Calypso yesterday, on the way in to Mimas. Calypso is one of the smaller moonlets of Saturn at only 34 x 22 x 22 kilometers in diameter. Here's my take on one of the two red-green-blue image sets. At least in the raw JPEG images posted to the Cassini public website, I see basically no color variation across the little moon's surface.

Calypso

NASA / JPL / SSI / color composite by Emily Lakdawalla

Calypso
Calypso, only 34 x 22 x 22 kilometers in diameter, occupies the L5 Lagrangian point in Tethys' orbit -- it sits in a point 60 degrees behind Tethys. Cassini passed within 22,000 kilometers of the moon on February 13, 2010, for the best look yet at its smooth, icy surface. This view is a color composite from Cassini's raw images, red, green, and blue frames overlaid on a stacked composite of red, green, blue, and clear images. (Stacking mostly serves to decrease the artifacts caused by the JPEG format of the raw images.) The full-size image has been enlarged by a factor of two.
Here's a neat video of Cassini's changing perspective on Calypso during the flyby. It bounces back and forth several times so that you can see Calypso's shape from its rotation.
Flying past Calypso
redit: NASA / JPL / SSI / animation by Ian Regan

Like Telesto, Helene, and Polydeuces, Calypso occupies a funny balancing point in the Saturn system, in one of the Lagrangian points of a larger moon. Late on a Sunday evening I'm grateful for Wikipedia's explanation of what exactly a Lagrangian point is:

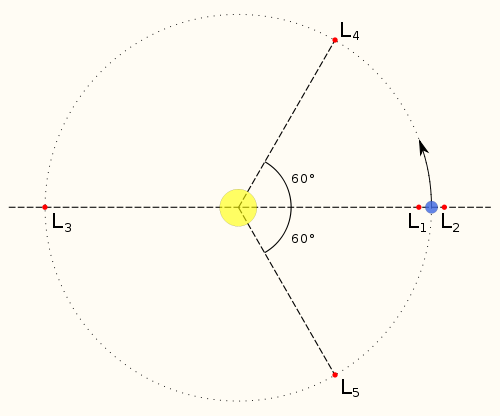

Lagrangian points

Wikimedia commons

Lagrangian points
From Wikipedia: given two massive bodies in circular orbits around their common center of mass, there are five positions in space where a third body, of comparatively negligible mass, could be placed which would then maintain its position relative to the two massive bodies. As seen in a rotating reference frame with the same period as the two co-orbiting bodies, the gravitational fields of two massive bodies combined with the centrifugal force are in balance at the Lagrangian points, allowing the third body to be stationary with respect to the first two bodies.
Calypso trails Tethys in its orbit around Saturn, in the L5 point; Telesto leads it, in L4. (Likewise, Polydeuces trails Dione, while Helene leads it.) The Lagrangian satellites of Saturn share a common look -- icy white and smooth. Here's some of the best Cassini views of Telesto and Helene, which are similar in size to Calypso. Polydeuces was discovered by Cassini and is only a tenth the diameter of the others; Cassini hasn't managed to resolve much detail on that one.
Telesto

NASA / JPL / SSI / color composite by Gordan Ugarkovic

Telesto
Cassini captured this view of the leading hemisphere of Telesto on August 27, 2009. Telesto is a small moon, 34 x 28 x 36 kilometers in diameter, that occupies a Lagrange point ahead of Tethys in its orbit around Saturn. This is an approximately natural color view composed of raw images.
The smooth look is, I think, because these bodies tend to collect dust. The Lagrangian points in a system like Saturn's must be akin to the great garbage patch at the center of the Pacific gyre -- it must be a place where material tends to collect, all floating around at pretty low relative speed. If there is even a smallish nucleus available, that floating Saturnian trash would probably tend to collect, forming a garbage moon. But in the Saturn system, the "trash" we're talking about isn't plastic grocery sacks; it's bits of dusty ice. So I imagine Calypso (and the other Lagrangian moons) as an enormous, barely packed fluffy snowball.

The view of Calypso is pretty cool, I think. There are some intriguing, subtle topographic features highlighted in the glancing sunlight near the terminator:

Groovy Calypso

NASA / JPL / SSI / cartoon by Emily Lakdawalla

Groovy Calypso
Cassini's view of Calypso on February 13, 2010 showed some intriguing grooves crossing the little moon.
Grooves are not uncommon features on small bodies in the solar system. Depending on the place, there are a variety of reasons why you might see grooves. Because the grooves on this thing are not straight lines, I'm going to speculate wildly and say we see evidence of material flowing across Calypso, seeking a local gravity low -- the remnant of slow-mo avalanches of icy fluff.

The pictures from the Mimas flyby are supposed to hit the ground at 4:30 tomorrow morning my time. I'll be checking to see if they've come in but don't know how soon I'll be able to craft a blog entry, as it's a school holiday here in the U.S. (President's day, when we honor Lincoln and Washington). So if you're eager to see them, go to the Cassini raw images website yourself! If you're wondering what you're looking at, Jason Perry's Looking Ahead article for the CICLOPS website is, as always, incredibly useful.
