Headshot of Emily Lakdawalla

Graphics from the LCROSS press briefing

Posted by Emily Lakdawalla

09-10-2009 15:59 CDT

Topics: LCROSS, the Moon

EDIT OCT 10 2:48 PM: I just realized that the images of the impact flash from the mid-infrared camera were all released mirror-reversed, so I have corrected their orientation below. It's not incorrect for something to be rotated 180 degrees, but you can't correct a mirror-reversal by rotating an image. In order to be able to compare the views of Cabeus from the different LCROSS cameras you have to mirror-reverse the mid-infrared camera images they've been releasing, so I've done that to all three mid-infrared camera images below.

It's been a little difficult to get a hold of the graphics that they used at this morning's press briefing. First they were available in PDF format, but some images were missing, then the PDFs disappeared and were replaced with a gallery of JPEGs that was kind of difficult to browse. So I'm hereby performing a public service by posting all the important graphics I could find, and I've added some caption information as far as I know it. I also mirror-flipped one of the images that was released reversed. (It's not uncommon for quick releases of new space camera data to be accidentally released mirror-reversed; ESA did it during the Rosetta Earth flyby, and India did it with a Chandrayaan-1 image of Earth.)

I'm not sure what to expect out of the LCROSS mission in terms of more image releases. For one, I'd love to have more of the shepherd spacecraft's inbound images. The good news is that the longest we'll have to wait to see any of that data is six months; by six months from today, LCROSS is required to have delivered all of its data to the Planetary Data System.

I decided not to collect any of the ground-based observatory images, because they'll likely improve with processing and will have better stories to tell once they can add data from their spectrometers. So I'll wait for that.

So here's what I could find from LCROSS itself, put into chronological order:

LCROSS shepherd spacecraft image


LCROSS shepherd spacecraft image
LCROSS snapped this image of the Moon at 10:44:45 UTC on October 9, about 50 minutes before it crashed.

Here's one other treasure that wasn't on the official website:

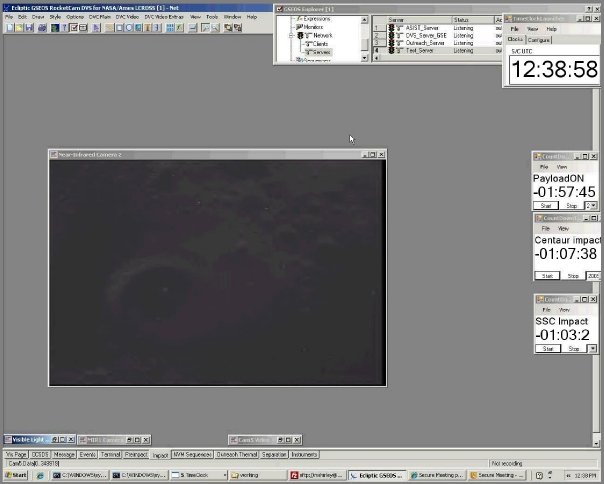

Last image from LCROSS

NASA / ARC / courtesy Emory Stagmer

Last image from LCROSS
This is what Emory Stagmer's computer screen looked like about an hour after the LCROSS impact. On the screen is the very last image returned from LCROSS, a fraction of a second before its impact. Stagmer is the flight software lead for the LCROSS mission and was Twittering from LCROSS mission control during the impact events.

Also don't miss the three animations I posted earlier!

See other posts from October 2009


Or read more blog entries about: LCROSS, the Moon
