A couple of helpful visualizations of LCROSS impact

Posted by Emily Lakdawalla

08-10-2009 17:25 CDT

Topics: pretty pictures, LCROSS, the Moon, animation

The visualization studio at Goddard Space Flight Center has just posted some handy simulations of what we can expect the LCROSS impact to look like. First, here's a movie that zooms in from the entire moon to the ejecta curtain in Cabeus; the blue arcs represent 50, 100, and 200 kilometers above the impact site.

Visualization of LCROSS impact

Credit: NASA/Goddard Space Flight Center Scientific Visualization Studio

Posted by Emily Lakdawalla on Thursday, October 8, 2009

And here's a map of that south polar region. The red shading indicates the location of the crater Cabeus; because it's there it's hard to tell that the ejecta curtain will be viewed against a black, shadowed backdrop, a plus for astronomers.

Viewing the LCROSS impact site

NASA / GSFC Scientific Visualization Studio

Viewing the LCROSS impact site

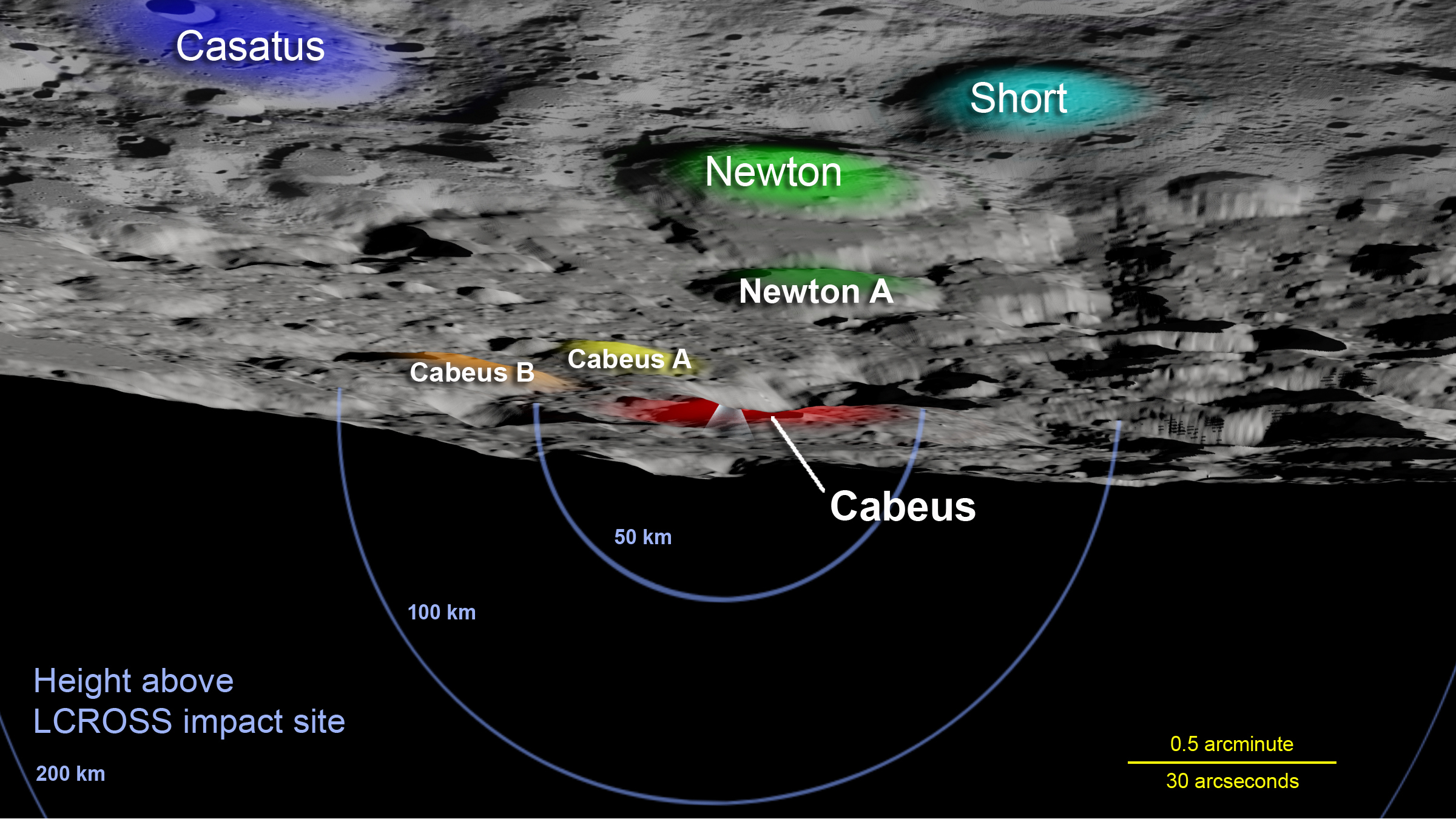

Key lunar landmarks used to locate Cabeus crater, the site of the LCROSS crash, are colored and labeled in this view. The yellow scale shows angular distances in the plane of the impact site; blue arcs show heights 50, 100 and 200 kilometers above it. An ejecta curtain is also drawn in.

These visualizations aren't just eye candy. They were developed as a part of the impact site selection process, which sought to find a location that had the greatest likelihood of containing substantial subsurface water while satisfying various geologic requirements (in a smooth part of the floor, low temperature, permanently shadowed) and viewability requirements. The Visualization Studio used as input very recently acquired topographic data on the lunar south pole from Kaguya and Lunar Reconnaissance Orbiter and discovered a combination of topographic features that will provide for a well-lit plume visible within a couple of kilometers above the site of the impact against a black backdrop.
