Neptune from two slightly different perspectives

Posted by Emily Lakdawalla

06-09-2010 22:39 CDT

Topics: New Horizons, Hubble Space Telescope, pretty pictures, amateur image processing, Triton, Neptune, Neptune's moons, global views, many worlds

Coincidentally, two new images of Neptune were posted today, from two very different sources. One came from Earth. It was from the Hubble Space Telescope, our most impressive eye on objects in the sky, in visible and ultraviolet wavelengths anyway. Although Hubble has great eyesight, Neptune is very far away from Earth -- never closer than 29 astronomical units -- so it's a relatively small ball in Hubble photos. Still, the photo is detailed enough to reveal some cloud features.

Neptune from Hubble, August 28, 2010

NASA / STScI / Kathy Rages / Gordan Ugarkovic

Neptune from Hubble, August 28, 2010
The new Wide Field Camera 3 on Hubble was employed to photograph Neptune in near-natural color on August 28, 2010, when the planet was near its opposition. The version on the right has enhanced contrast, revealing a dark ring of clouds around the south pole. Triton would be visible to Hubble if it were in the frame, but it was not in the camera field of view at the time of the observation.

On the same day, the New Horizons team posted a new view that they took of Neptune last month. This is a less detailed photo, of course, because as fine a camera as New Horizons' LORRI is, it's not Hubble. Still, some of you might be surprised that although New Horizons has traveled nearly to the orbit of Uranus, it can't capture photos of Neptune that are more detailed than this. What gives?

Neptune and Triton from New Horizons, July 2010

NASA / JHUAPL / SwRI

Neptune and Triton from New Horizons, July 2010
During its 2010 "Annual Checkout" in July, New Horizons turned its highest-resolution camera, LORRI, toward the Neptune system. As far as New Horizons is from Earth (more than 17 astronomical units), it was actually even farther from Neptune when it captured this photo (23 A.U.) Even at this enormous distance, New Horizons was able to separate the light of Neptune's largest moon Triton from the light of the planet, which was 100 times brighter.

As far as New Horizons is from Earth (more than 17 astronomical units, approaching Uranus' orbit at 19 AU from the Sun, 18 from Earth), it was actually even farther from Neptune when it captured this photo: a huge 23 AU. If you're having trouble figuring out how that works, here's a diagram that should make things clear:

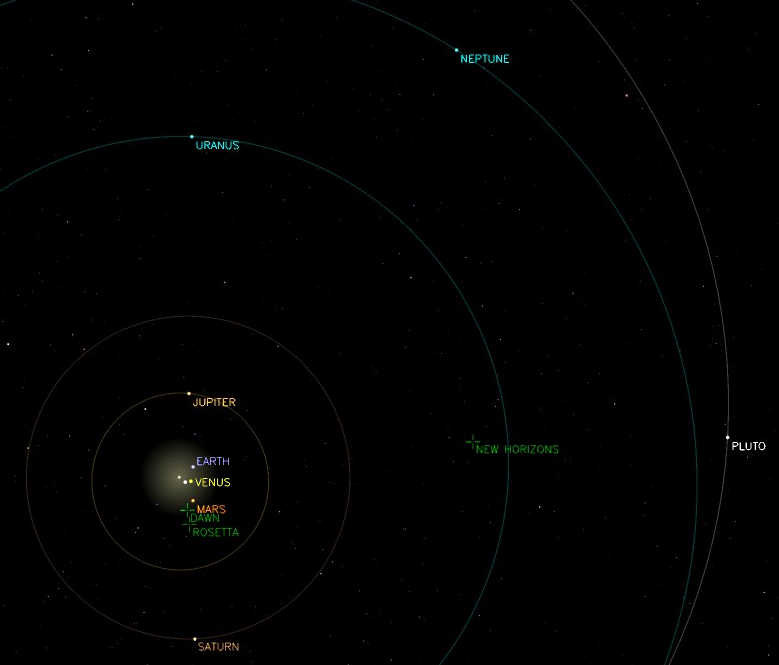

The solar system on July 30, 2010

NASA / JPL-Caltech / Solar System Simulator (David Seal)

The solar system on July 30, 2010
On July 30, 2010, when New Horizons imaged Neptune and Triton, Neptune was 23 astronomical units from the spacecraft. All the other planets except Uranus, as well as Pluto and every asteroid in the mail belt, were closer to New Horizons at the time!

Even at the enormous distance of 23 AU, New Horizons was able to separate the light of Neptune's largest moon Triton from the light of the planet, which was 100 times brighter. That's pretty impressive. But it's not just an impressive trick; there's important science going on, too. As you can see from Earth's position in the diagram, we pretty much always see Neptune fully lit by the Sun. Our other most distant camera-equipped spacecraft are Cassini, in orbit at Saturn, and Dawn and Rosetta, in the asteroid belt. Even if they were turned to image Neptune, they'd still see a world almost fully lit by the Sun. New Horizons isn't much closer to Neptune than Earth or any of the deep spacecraft, but it sees Neptune at a much higher phase angle (the angle from Sun, to Neptune, to spacecraft) of 34 degrees, and that number will increase with time as New Horizons slowly gains on Pluto. Neptune's clouds reflect light differently depending on the phase angle at which they're observed; the precise nature of those variations with phase haven't yet been mapped out, and as New Horizons does so we'll learn about the structure of Neptune's atmosphere. No other spacecraft can do this, and there's absolutely no other spacecraft currently being planned that will be able to in the foreseeable future. So New Horizons is already performing unique science, even though it's only about halfway to Pluto.
