Emily LakdawallaMay 24, 2010

The goal of Opportunity's trek

Opportunity's kilometers-long march across the sands of Meridiani Planum is a great story, and the journey is fun to follow; but what could be worth such a long march? The answer: smectite.


Smectite clays on Earth

University of Pittsburgh / Norris W. Jones

Smectite clays on Earth
Smectite clays are famous in some parts of the world because they tend to shrink when dry and expand dramatically when wet. This causes problems for basements, foundations, and hill slopes.

It's a worthy goal, really. Smectite is an iron- and magnesium-bearing clay mineral, a type of mineral known as a phyllosilicate. Phyllosilicates are minerals that have a platy crystal structure and frequently form by the alteration of other silicate minerals in the presence of water.

The presence of phyllosilicates on Mars is a relatively recent discovery. Mineralogists have been looking for them for a long time, because of their ubiquity in wet environments on Earth. In fact, if you have water in contact with olivine and pyroxene, some of the more common Martian minerals, for any length of time, it would be hard not to make phyllosilicates. If you want to find possible habitable environments on Mars, you need to be able to find places where there are phyllosilicate minerals. But if all you see is olivine, that's pretty strong evidence that water wasn't ever an important Martian substance.

Olivine and pyroxene are, in fact, all over the place on Mars, while definitive evidence for phyllosilicates proved harder to find. Like any other mineral, they are searched for from orbit based upon their telltale absorptions of certain wavelengths of (mostly infrared) light. As early as the 1960s, researchers performing Earth-based spectroscopy found hints of their presence, but the evidence wasn't definitive and could be explained away. Even when the Thermal Emission Spectrometer on Mars Global Surveyor mapped the entire planet in the late 1990s (revealing, among other things, the hematite hot spot that led NASA to choose Meridiani for Opportunity's landing site), evidence for phyllosilicates was present but not conclusive. However, a few spots were identified, such as Nili Fossae and Mawrth Vallis, where their presence was considered most plausible.

Nili Fossae Trough from CRISM and HiRISE

NASA / JPL-Caltech / U. Arizona / JHUAPL

Nili Fossae Trough from CRISM and HiRISE
The blooming purples and greens in this image of the west wall of Nili Fossae, northwest of Mars' Isidis basin, map the signatures of minerals in the Martian bedrock that scientists hope to sample with a future rover. In this image, the blues and magentas map locations where CRISM sees the spectral signature of phyllosilicates, minerals that form when igneous minerals such as olivine and pyroxene are altered in the presence of water. Greenish colors imply the presence of low-calcium pyroxene, a mineral that formed very early in Mars' history with the hottest volcanic activity. A lander sent to one of these greenish areas has the potential to sample Mars' youth.

Conclusive evidence was finally unearthed (unMarsed?) in 2005 by the Observatoire pour la Mineralogie, l'Eau, les Glaces, et l'Activité (OMEGA) instrument on Mars Express. The paper explained why the phyllosilicates had been so hard to find: they were only found in special locations, among the oldest rocks of Mars, rocks of so-called "Noachian" age. These rocks are only exposed on the Martian surface in special locations where geologic activity has stripped off overlying, younger rocks or tilted whole blocks of crust to expose the more ancient materials. Previous methods of searching for the phyllosilicates couldn't resolve the spatially limited exposures of these Noachian bits of rock.

Another interesting fact emerged from the early OMEGA results: there were also lots of sulfate rocks on Mars, and virtually nowhere were the phyllosilicates and sulfates found together. The two types of minerals form in different kinds of watery environments; phyllosilicates form under neutral to alkaline chemical conditions, while sulfates form under highly acidic conditions.

OMEGA discovers water-rich minerals in Marwth Vallis

Courtesy ESA / OMEGA / HRSC

OMEGA discovers water-rich minerals in Marwth Vallis
In this HRSC 3D image of the Marwth Vallis area (shades of grey), OMEGA has mapped the water-rich minerals, denoted here in blue. No hydrated minerals or sediments have been detected, either in the channel or in its opening. However, the outflow was so violent that it eroded and exposed ancient hydrated clay-rich minerals, dating back to an early era when water was present.

By the time that the OMEGA team published their phyllosilicate paper, they had begun to put together their mineral maps with traditional geologic maps that use the law of superposition to establish an order for geologic events and created a story for Mars' history that explained why there were phyllosilicates in some places and sulfates in others. They published the idea in 2006; I summarized it here.

In a nutshell, Mars' history can be divided into three ages based upon what was happening chemically. The first age could have been warm and wet (it was at least wet underground); the second age was volcanically gassy and wet; and the third, the one Mars is in now, is cold, dry, and, well, rather boring. The wet and possibly warm age occurred in the early to mid Noachian period and resulted in the phyllosilicate rocks. Then there was a huge burst of volcanism that filled the atmosphere with gases including sulfur dioxide, resulting in a period of acidic alteration of surface rocks, producing the sulfates. This period extended into the Hesperian age of Mars's history. Finally, the present (Amazonian) age, comprising most of Mars' history, is characterized by slow alteration of surface materials without liquid water.

So where does Opportunity come in? Well, throughout its mission it's been rolling across sulfate rocks formed during that middle, acidic age of Mars. Water is important in the story of these rocks' formation, but due to the highly acidic conditions that they formed in, it's considered unlikely that there was any kind of Martian life in those environments.

But, off in the distance, in the rocks along the rim of Endeavour crater, there are signs of smectite, one of those elusive phyllosilicates. That's according to a paper by James Wray and seven coauthors from the Mars Reconnaissance Orbiter CRISM team, published last year. (CRISM, like OMEGA, is an imaging spectrometer; it has higher resolution, both spatial and spectral, than OMEGA.)

Endeavour crater is older than the sulfate rocks, because the sulfate rocks partially bury the crater and filled some of its interior. But the sulfate sediments couldn't bury all of the crater's rim, parts of which poke up above the plains. Those rim rocks are layered and show up as locations of phyllosilicate minerals in the CRISM mineral maps.

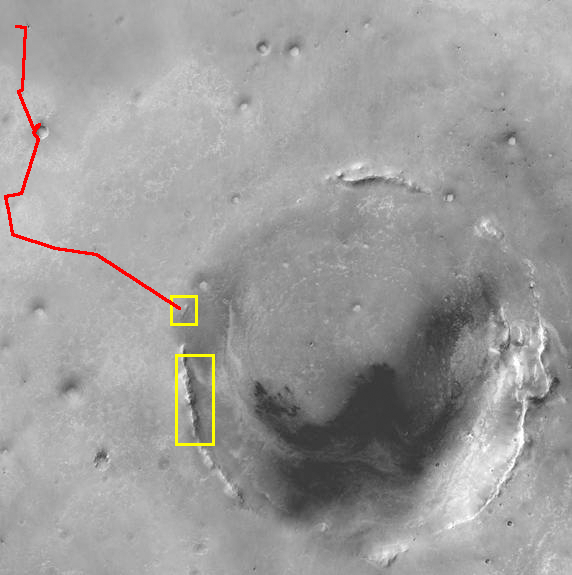

Context map for mineralogy near Endeavour crater

NASA / JPL / MSSS / cartoon by Emily Lakdawalla

Context map for mineralogy near Endeavour crater
Endeavour crater, centered at 2.3°S, 5.2 °W, is 20 kilometers in diameter, with a rim of ancient rocks that stick up above the Meridiani plains. That's why Opportunity embarked on a drive of well over 15 kilometers to reach it. Opportunity's approximate past and future path is cartooned in red; both Endurance (tiny crater near upper left) and Victoria (slightly less tiny crater in the middle of the north-south drive segment) are visible on this map. Yellow boxes mark the locations of two detail images that use CRISM data to show mineralogy in Endeavour's rim.
Mineral map of Endeavour's nearest rim


Mineral map of Endeavour's nearest rim
CRISM spectral maps of the bit of Endeavour's rim nearest to Opportunity show smectite (red) associated with the upraised rim rocks and hydrated sulfate minerals (blue) associated with the lower-elevation sedimentary fill. The image is about 1 kilometer wide.

So if Opportunity can complete its drive across Meridiani Planum to the rim of Endeavour, it could potentially sample rocks that formed in watery environments during Mars' wet and possibly warm geologic youth. These kinds of rocks have never ever been sampled by any landed mission. Opportunity's examination of these rocks could test the unifying theory of Mars' geologic history advocated by the OMEGA team. More importantly, though, it would be the first time that a landed mission could directly examine the ancient rocks from environments that might once have provided a habitat for Martian life.

What can Opportunity do, if it gets to Endeavour? Wray and his coauthors say that the Mössbauer spectrometer can confirm the presence of the minerals that are proposed to be visible from orbit. The Mössbauer does rely on a radioactive source that has decayed since landing, so it takes a REALLY long time to perform its measurements, or "integrations." So they will have to be careful about how many spots they choose to do Mössbauer measurements of. They also say that the Mini-TES could confirm the presence of phyllosilicates, but that would be quite a trick, since the Mini-TES on Opportunity was rendered unuseable by dust contamination of the mirror in its periscope during the 2007 dust storm. The APXS can do its usual determinations of major and minor element abundances, and all the camera systems are still working well, so Pancam and Microscopic Imager would yield first-of-their-kind close-up views of these ancient rocks from Mars.

That's the destination -- but what about the journey? One type of rock that lies along the ground in between Opportunity's current location and the rim of Endeavour is hydrated sulfates -- that is, sulfate minerals that contain lots of water molecules in their chemical structure. Now, Opportunity has seen hydrated sulfates before, lots of them. But where Opportunity has seen these minerals, the orbiters have not seen them on the ground where Opportunity has been. The rover will soon be venturing into terrain where orbiters have spied those hydrated sulfates. So Opportunity will soon be gathering data to solve the mystery of why these materials should be visible from orbit in some places but not others where they are proven to exist.

So sit back and enjoy the drive. And enjoy some lovely views of the destination. Here's that nearest bit of crater rim from orbit:

Closest rim of Endeavour crater to Opportunity

NASA / JPL-Caltech / UA

Closest rim of Endeavour crater to Opportunity
This is a small segment of HiRISE image PSP_010486_1775, which covers the western rim of Endeavour crater, the destination for Opportunity's long trek. The small piece of the image shown here is the segment of Endeavour's rim that is closest to Opportunity.
