Brother, Can You Spare $1B for a Planetary Space Telescope?

Posted by Van Kane

20-02-2013 12:29 CST

Topics: future technology, Future Mission Concepts

Imagine you had a Hubble-class telescope and could use in any way you wanted to explore planets.  What would you do with it?

A number of scientists have had the chance to explore that question courtesy of an American spy agency.  A year ago, NASA received a surprise phone call from the National Reconnaissance Agency (NRO), which flies spy satellites, asking if it would like two spare, Hubble-class space telescopes.  NASA’s managers said,”Yes!,” and now the agency is looking for the best uses for the telescopes.  The highest priority is to see if one telescope could be used to meet the needs for the Wide-Field Infrared Survey Telescope (WFIRST) to study dark energy.  That potentially leaves a second telescope for other deep space or solar system studies.

Before I describe the concepts discussed at a recent conference, a truth in advertising statement is required.  Each telescope represents $250M worth of hardware.  However, not all the systems needed for an actual satellite are included, instruments are not included, and the whole lot would need to be launched.  Figures I’ve read suggest that turning each telescope into a working observatory would cost approximately $1B, depending on the specifics of the mission.  NASA’s current budgets have no room to fund a single mission, much less two.  In a few years, there may be room for a mission or two, so the space agency is soliciting ideas.

Some assembly required: The hardware provided by NRO
Some assembly required: The hardware provided by NRO
NASA would be required to provide all the additional hardware, launch, and mission operations support to turn the core telescope into a working space telescope. Image from this presentation (PDF).

At the conference, researchers presented ideas for both deep space astronomical targets and a variety of planetary targets.  The latter were divided between exploring Mars, monitoring the solar system, and examining any planets orbiting stars in the stellar neighborhood.

The original mission for the telescopes was to take very high resolution images of the Earth’s surface.  Two of the proposals would repurpose those terrestrial imaging capabilities to spy the surface of the Red Planet in very high resolution.  The Mars Reconnaissance Orbiter’s instruments are the current high resolution champs at Mars with 90 cm resolution for images and 18 m for multi-spectral imaging.  By using the NRO’s telescope, those numbers improve to 23 cm and 1 m.  A second proposal would improve those numbers to 8 cm and 21 cm.  (Those improvements appear to also come in part from more modern instruments as well as the larger telescope.)  The high resolution comes with a tradeoff, and only a handful of sites could be studied each day.  Depending on the resolution, the images taken would be stripes along the surface less than two or even one kilometer wide.

Getting this large of a telescope to Mars, however, would be a challenge.  Both proposals would use a solar electric propulsion stage.  While smaller planetary spacecraft have used solar electric propulsion, I believe this would be the first with such a large spacecraft.  One of the proposals points out that this would be a demonstration of solar electric propulsion capabilities that may eventually be used for a human Mars mission.

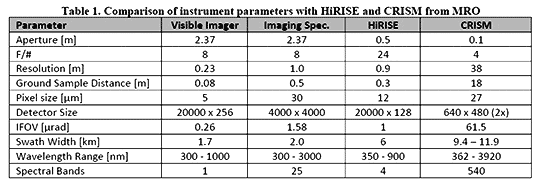

Comparison of potential capabilities of the NRO telescopes in Mars orbit
Comparison of potential capabilities of the NRO telescopes in Mars orbit
Comparison of potential capabilities of the NRO telescopes in Mars orbit for visible camera images and for an imaging spectrometer compared to the capabilities of the currently operating Mars Reconnaissance Orbiters HiRISE camera and CRISM imaging spectrometer. While the NRO telescope would improve resolution, the size of the images would be much smaller (look at the swath widths). From Zachary J. Bailey and colleagues abstract (PDF).

Several of the proposals would keep the telescope near Earth, but would use it to watch the bodies of the solar system.  The studies proposed are not that different than what can be done with Hubble today.  However, the Hubble telescope spends just a small portion of its time looking at the neighborhood.  As one proposal summary states: “The advanced instruments on [Hubble] are rarely trained on solar system targets due to high oversubscription and an increasing focus on deep field observations.”

The solar system watch proposals presented at the conference point out that the instruments proposed would also be useful for deep space studies, the allocation of observing time would be reversed.  The telescope’s resolution and would allow it to be a planetary mission to many worlds.  Many of the studies would repeat observations over months and years: the change in weather patterns on the gas planets as well as Saturn’s moon Titan; and the evolution of outgassing by comets as they approach and recede from the inner solar system; and volcanism on Io and Enceladus (with searches for volcanism on other worlds).  Other observations would study large numbers of asteroids and Kuiper belt objects in the distant solar system to measure their size and composition.  Depending on the specific proposal, the instrument complement would include some combination of a camera for high resolution images and/or ultraviolet and near infrared spectrometers for composition measurements.

A number of the proposals would use an NRO telescope to perform long term solar system studies.  This image shows Uranus as imaged by the Keck II telescope.

Dark and bright spots on Uranus

STSCI / Heidi Hammel / Emily Lakdawalla

Dark and bright spots on Uranus
These images are composed of two views of Uranus taken through methane band filters at 889 and 906 nanometers. In the right-hand image, a yellow circle shows the location of a dark spot with a companion bright spot.

A number of the proposers would look beyond our solar system to study planets orbiting stars in our stellar neighborhood up to 60 light years away.  While the specifics of each proposal varied, most proposed would use one or more of three techniques:

  • A coronagraph could block the bright light of the target star, allowing planets to be visible for spectrographic studies of their composition.  If the coronagraph is built into the telescope, it appears that gas giants and possibly super Earth-sized planets could be studied.  If a co-orbiting stellar shade were used instead, Earth-sized worlds within inner stellar systems could be detected.
  • A second instrument could use astrometric techniques to measure extremely faint wobbles in the star’s motion to determine the mass of visible planets and to detect smaller planets too small to image.  While similar techniques have been used to discover numerous exo-planets with Earth-bound telescopes, a large telescope above Earth’s atmosphere would allow much more sensitive searchers
  • A third instrument could measure the spectral change that occurs when planets cross in front of their stars.  The bright light of the star shining through the atmosphere enables more precise compositional measurements for planets with atmospheres than is possible with a coronagraphic spectrometer, which can examine only the faint reflected light.  For all planets that happen to cross in front of the star, the dimming of the light received provides information about the size of the planet.
Colors of the Planets
Colors of the Planets
We know so little about planets orbiting other stars that even simple measurements of colors can tell us what type of world they are. In this figure from Timothy A. Livengood's proposal, ratios of colors (indicated by their wavelengths) sort the planets into distinct groups using color information. The Earth, with its water and life, is distinct from the other planets in the solar system.

While this blog is about planetary studies, exciting, potentially ground breaking astronomical missions also were proposed – it is not a given that a mission using the second telescope would have a planetary focus.  But if I were to answer my own question about what I would use a Hubble-class telescope for, my first choice would be to study planets around nearby stars.  This would be ground breaking research.  If the budget and spacecraft capabilities permitted, I’d then add instruments for studying solar system objects and dedicate large blocks of time to solar system studies.  (These instruments also could be similar – but with more modern technologies – to those currently on Hubble and therefore would also be useful for continuing Hubble astronomy studies.)

The recently completed conference was intended to look at a wide range of concepts.  NASA intends to select six for more in-depth studies.  It is likely to have plenty of time to do so.  Given current budgets, the second telescope (assuming the first is used for the WFIRST mission) seems unlikely to fly until the mid-2020s, if ever.

Resources:

Conference website and list of proposals with four page abstracts.

Selected proposal abstracts that provide a broad background for each proposed planetary mission type:

Mars mission

Solar system monitoring

Exo planet studies


See other posts from February 2013



Or read more blog entries about: future technology, Future Mission Concepts

Comments:

Honzik: 02/20/2013 03:19 CST

Hi, how would the resolution and capabilities change if all three (two NRO and Hubble) telescopes would operate together (forming one larger telescope)? Would it be able to get better pictures of extrasolar planets?

Michael Richmond: 02/23/2013 07:19 CST

It is not possible for astronomers to combine the data from optical telescopes in orbit, so, alas, that idea won't work.
