"Hi" to Juno

Filed under citizen science, magnetospheres, podcasts and videos, Juno

Go Back

During its Earth flyby on October 9, 2013, the Juno mission coordinated a worldwide campaign with shortwave radio operators to transmit a signal to Juno that the spacecraft's instruments could detect. They repeatedly transmitted a Morse-code "HI" -- four dits followed by two dits. Six of those "HI"s were partially or completely detected.

NASA / JPL / University of Iowa

Here is the JPL caption for the image, and here is the HI Juno website.

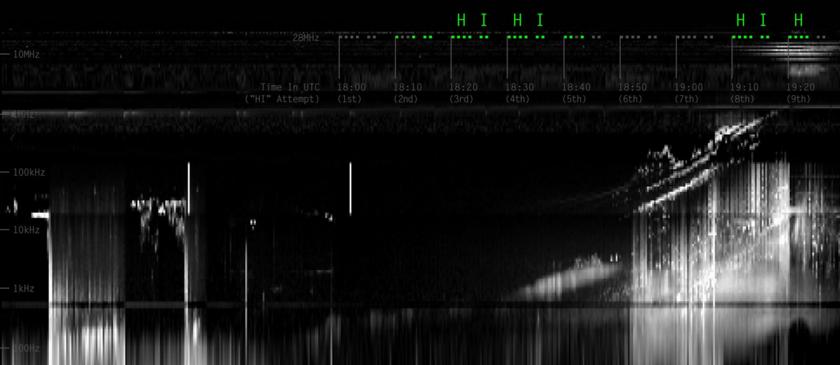

During its close flyby of Earth, NASA's Jupiter-bound Juno spacecraft listened for a coordinated, global transmission from amateur radio operators using its radio and plasma wave science instrument, known as Waves. This spectrogram and audio file illustrate that Waves did indeed detect the message.

The video presents natural radio signals from Earth's magnetosphere along with pieces of the repeated Morse code message, recorded by Juno and turned into sound.

In Morse code, characters are formed using dots and dashes, or "dits and dahs." The word "HI" is formed by transmitting four dits for "H," followed by a space and then two more dits for "I." The full message was transmitted 16 times, beginning again every 10 minutes, starting at 18:00 UTC (2 p.m. Eastern time) on Oct. 9, 2013. Each dit lasted 30 seconds. Radio operators used two webpages (provided by NASA's Jet Propulsion Laboratory and the Juno team) to synchronize their transmissions.

The green dots at top represent pieces of the repeated message that Juno was able to detect. Grey dots represent parts of the message that were being transmitted, but which were not clearly detected by the Waves instrument.

Scientists have processed the data to identify the ham radio signal and to isolate it from the natural background. The strength of the ham radio signals is not indicated here, merely their detection in the data.

More than 1,400 radio operators from around the world confirmed their participation in the activity. Given the variable conditions in Earth's ionosphere and uncertainties in how many hams would participate, scientists on the Waves team were not sure the signal could be detected. They were ecstatic when the message could be readily seen in the data.

The Waves data presented here cover the period from an hour before the ham radio transmissions began until about 19:20 UTC, which was the time of Juno's closest approach to Earth. A few minutes after closest approach, Juno entered safe mode, which caused its science instruments (including Waves) to be powered off. The spacecraft returned to normal operations a few days after the flyby.

This activity was conceived by the Juno team for the purpose of public engagement.

There are two video versions available:

This one just shows a graph and sonification of the waves that Juno detected during the flyby:

And here is a four-minute documentary on the "HI Juno" campaign, explaining the other sounds further and including video of participants.

Original image data dated on or about October 9, 2013.

Most NASA images are in the public domain. Reuse of this image is governed by NASA's image use policy.
